Blisk release 20.0.176.140

We are excited to release the new features: New Android mobiles and desktops (including iMac 4k and 5k), and platform update (latest technologies and security improvements).

Important: learn more about the new workflow in our new Getting Started Guide.

New devices in Blisk

Samsung Galaxy S22, Samsung Galaxy S22 Plus, Samsung Galaxy S22 Ultra, Desktop 4k 1x scale, iMac Pro Retina 5K 27″, iMac Retina 4․5K 24″, iMac Retina 4K 21․5″, iMac Retina 2016 27″ are ready to use in the Blisk app, where you can run a mobile test, a responsive test, or a cross-device test. These devices are preinstalled in the Blisk app, so you don't need to download or install anything other than the Blisk app. The new devices run directly on your PC, Mac, or Linux, and the code runs locally, avoiding potential data loss or security issues.

Requirements: this feature is available in Blisk v.20.0.176.140 and later. You may need to update the Blisk application to use this feature. View Documentation.

Starting with v.20.0.176.140, Blisk opens new possibilities for running different kinds of mobile tests on Samsung Galaxy S22, Samsung Galaxy S22 Plus, Samsung Galaxy S22 Ultra, Desktop 4k 1x scale, iMac Pro Retina 5K 27″, iMac Retina 4․5K 24″, iMac Retina 4K 21․5″, iMac Retina 2016 27″: responsive test, multi-device test, touch events test, performance test, landscape orientation test, dark mode test, test for page errors, slow Internet connection test, etc.

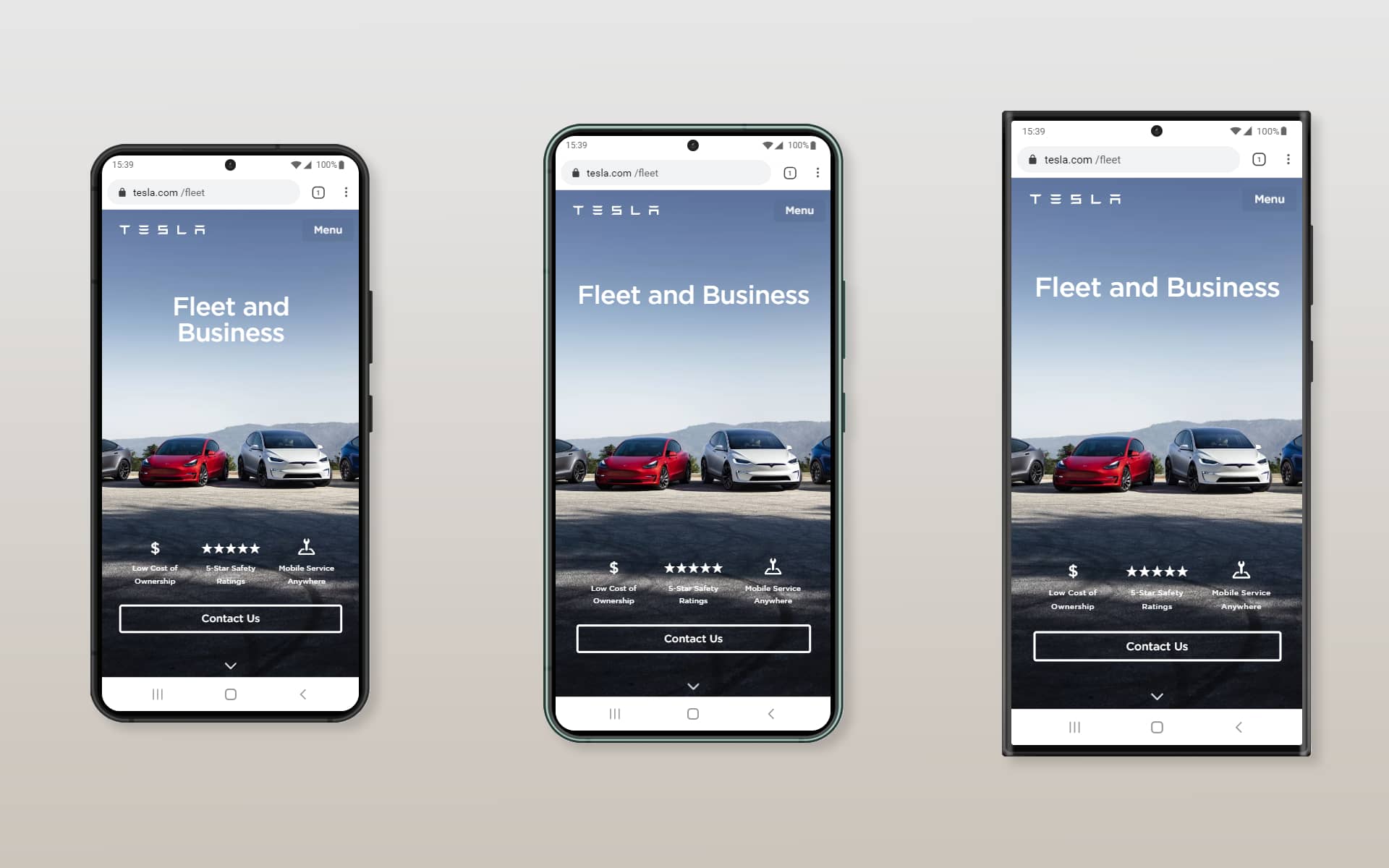

Galaxy S22-series in Blisk 20.0.176.140

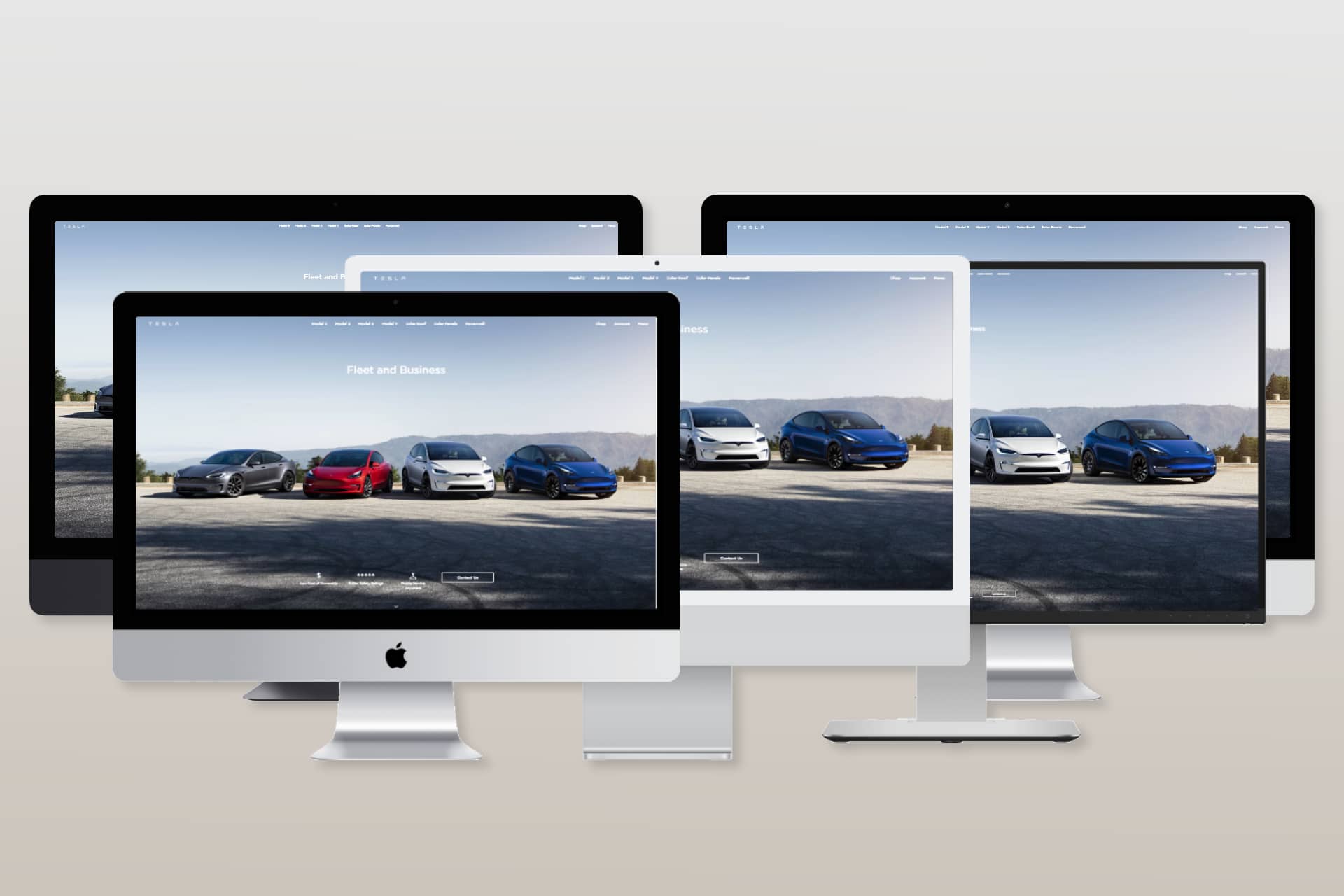

New desktops in Blisk 20.0.176.140

Galaxy S22-series and new desktops: Screen size, Viewport, Pixel Ratio, CSS Media Query, and specification

The specifications, viewport size, screen size, pixels per inch (PPI), and CSS Pixel Ratio for new devices are available on the Device portal, where you can find the device metrics for all devices including the latest Galaxy S22-series and desktops:

• Samsung Galaxy S22 viewport, resolution, and specs
• Samsung Galaxy S22 Plus viewport, resolution, and specs
• Samsung Galaxy S22 Ultra viewport, resolution, and specs
• Desktop 4K 1X Scale viewport, resolution, and specs
• iMac Pro Retina 5K 27″ viewport, resolution, and specs
• iMac Retina 4․5K 24″ viewport, resolution, and specs
• iMac Retina 4K 21․5″ viewport, resolution, and specs

How to run a mobile test on Samsung Galaxy S22, Samsung Galaxy S22 Plus, Samsung Galaxy S22 Ultra, Desktop 4k 1x scale, iMac Pro Retina 5K 27″, iMac Retina 4․5K 24″, iMac Retina 4K 21․5″, iMac Retina 2016 27″:

1. Download Blisk or update to the latest version.
2. Launch the Developer Mode from the Toolbar (screenshot below).
3. Click Device Manager (screenshot below).
4. Select Samsung Galaxy S22, Samsung Galaxy S22 Plus, Samsung Galaxy S22 Ultra, Desktop 4k 1x scale, iMac Pro Retina 5K 27″, iMac Retina 4․5K 24″, iMac Retina 4K 21․5″, iMac Retina 2016 27″ from the list.
5. Click Launch Devices.

Latest technologies support and security improvements

The current platform update includes a lot of new features, including new APIs, CSS features, and security improvements. Some of the most important features are described below:

Fetch Priority

Fetch Priority gives you a way to hint to the browser which order resources should be downloaded in, by using the fetchpriority attribute. This accepts values of "high", "low", and "auto".

• "high": You consider the resource a high priority and want the browser to prioritize it as long as the browser's heuristics don't prevent that from happening.
• "low": You consider the resource a low priority and want the browser to deprioritize it if its heuristics permit.
• "auto": This is the default value that lets the browser decide the appropriate priority.

In the example below, a low-priority image is indicated with fetchpriority="low".

<img
  src="/images/in\_viewport\_but\_not\_important.svg"
  fetchpriority="low"
  alt="I'm an unimportant image!"
/>

CSS Color Adjust: 'only' keyword for color-scheme

The only keyword has been re-added to the specification color-scheme as a way of per-element opt-out of color-scheme override like forced darkening.

• div { color-scheme: light } will force the div element into color-scheme dark and apply forced darkening.
• div { color-scheme: only light } will keep the color-scheme for the element light and opt-out of forced darkening.

This feature can be used to do per-element opt-out of color-scheme overrides like forced darkening.

HDR CSS Media Queries: dynamic-range

This feature adds a media query to CSS which allows a page to detect the current display device’s support for HDR.

This feature adds the query: dynamic-range which may be one of standard or high. Blisk will resolve this query according to the capabilities of the display device the browser window is currently positioned on, allowing pages to toggle CSS rules accordingly or respond in Javascript via window.matchMedia().

As HDR-supported displays become more common, web developers need ways to enable HDR content on their web pages without compromising the experience for users of non-HDR displays, or mixed-HDR multi-display setups. CSS already provides the 'media query' concept for toggling rules based on display device characteristics, and this feature extends that set of queries to enable detecting HDR support on the current display device.

New window.open() popup vs. window behavior

This change aligns Blisk with the spec for window.open(), by:
1. Adding a "popup" windowFeature to control popup vs. tab/window. 2. Ensuring all BarProp properties return !is_popup.

The window.open() API is currently confusing to use, in terms of trying to get it to open a popup vs. a tab/window. This change simplifies the usage by adding a single boolean argument called popup that works as you'd expect: popup=1 gets you a popup, and popup=0 gets a tab/window:

const popup = window.open('_blank','','popup=1'); const tab = window.open('_blank','','popup=0');

This is an interop-driven change, to align Blisk with the newly-landed spec for window.open. It does not change existing behavior around whether a popup or tab/window is opened, to avoid issues.

Autofill in ShadowDOM

This feature allows autofill to look into ShadowDOM when collecting form controls within a form element.

With the adoption of web components, it is common to wrap form controls like input elements in ShadowDOM. When autofill traverses the children of form elements to collect form controls, it currently skips ShadowDOM, and makes these form controls never get autofilled. This feature makes autofill also traverse into ShadowDOM when collecting form controls.

CSS cascade layers

CSS cascade layers (@layer rule and layered @import syntax) provide a structured way to organize and balance concerns within a single origin. Rules within a single cascade layer cascade together without interleaving with style rules outside the layer. This allows authors to achieve a certain cascade ordering for same-origin rules in a proper way.

Cascade layers allow authors to create layers to represent element defaults, third-party libraries, themes, components, overrides, and etc.—and are able to re-order the cascade of layers in an explicit way. Without cascade layers, currently, authors need to tweak, e.g., selector specificity, !import or source ordering to achieve a certain cascade ordering, which is cumbersome and error-prone.

Support of text-emphasis properties

This feature introduces text-emphasis, text-emphasis-color, text-emphasis-position, and text-emphasis-style CSS properties. They are unprefixed versions of -webkit-text-emphasis, -webkit-text-emphasis-color, -webkit-text-emphasis-position, and -webkit-text-emphasis-style.

Allow cookie domain attributes to be the empty string

This feature updates the parsing of cookie strings to allow a cookie's domain attribute to be set to the empty string. This change will also correct the failing web-platform tests related to an empty string domain. Additionally, it brings Blisk in alignment with the draft RFC6265bis specification and will improve interoperability with Chrome, Safari, and Firefox by matching their treatment of an empty cookie domain attribute.

Secure context fix for dedicated workers

Dedicated workers loaded from a secure (HTTPS) origin yet instantiated by insecure (non-HTTPS) contexts are no longer considered secure. This results in the following web developer-facing changes inside such worker contexts:

• self.isSecureContext is now false.
• self.caches and self.storageFoundation are no longer available.

This aligns Blisk behavior with the specification and Gecko.

Inert attribute

The inert attribute allows web authors to mark parts of the DOM tree as inert. When a node is inert:

• Hit-testing must act as if the pointer-events CSS property was set to none.
• Text selection functionality must act as if the user-select CSS property was set to none.
• If it is editable, the node behaves as if it were non-editable.
• The user agent may ignore the node for the purposes of find-in-page.

This aligns Blisk behavior with the specification and Gecko.

Navigation API

The window.navigation API (formerly known as the app history API) provides the ability to intercept and initiate navigations, as well as introspect an application's history entries. This provides a more useful alternative to window.history and window.location, specifically aimed at the needs of single-page web applications.

The existing window.history API is hard to deal with in practice, especially for single-page applications. In the best case, developers can work around this with various hacks. In the worst case, it causes user-facing pain in the form of lost state and broken back buttons, or the inability to achieve the desired navigation flow for a web app.

AbortSignal.timeout() Static Method

Returns a new AbortSignal object that is automatically aborted after a given number of milliseconds. This method can be used by developers to easily implement timeouts for signal-accepting async APIs, e.g. fetch().

The main motivating use case for this is helping web developers easily time out async operations, such as fetch(). For example, now you can write:

fetch(url, { signal: AbortSignal.timeout(10_000) });

CSS object-view-box

Object-view-box allows the author to specify a subset within an image that should draw within the content box of the target replaced element. This enables an author to create an image with a custom glow or shadow applied, with proper ink-overflow behavior like a CSS shadow would have.

Object-view-box and object-overflow allows the author to specify a subset within an image that should draw within the content box of the target replaced element. This enables an author to create an image with a custom glow or shadow applied, with proper ink-overflow behavior like a CSS shadow would have.

Individual Properties for CSS Transforms

This adds three new CSS properties: translate, rotate, and scale. These properties are known as the individual transform properties (and were previously known as the independent transform properties). This exposes a simple way for web developers to access transforms in an intuitive way, without having to think about how functions in the transform property interact with each other. The properties can be animated individually.

Support visual-box on overflow-clip-margin

Overflow-clip-margin specifies how far an element's content is allowed to paint before being clipped. This feature allows using visual-box values to configure the reference box that defines the overflow clip edge the content is clipped to.

CSS has() pseudo-class

The has() pseudo-class is a selector that specifies an element which has at least one element that matches the relative selector passed as an argument.

CSS modal Pseudo-Class

CSS modal is a pseudo-class selector to style dialog element. The modal pseudo-class represents an element that is in a state that excludes all interaction with elements outside it until it has been dismissed.

CSS Container Queries

Container Queries allow authors to style elements according to the size of a container element. It's similar to a @media query, except it evaluates against the size of a container instead of the size of the viewport.

CSS 'lh' Length Unit

The lh unit adds support for expressing CSS lengths relative to the line-height. That is typically useful for specifying the height of an element to fit a whole number of lines. Example: textarea { height: 5lh }

CSS Root Font Units: 'rex', 'rch', 'ric', 'rlh'

Adds root font units. Previously, only 'rem' has been supported in Blisk. This feature adds root element variants of ex, ch, ic, lh.

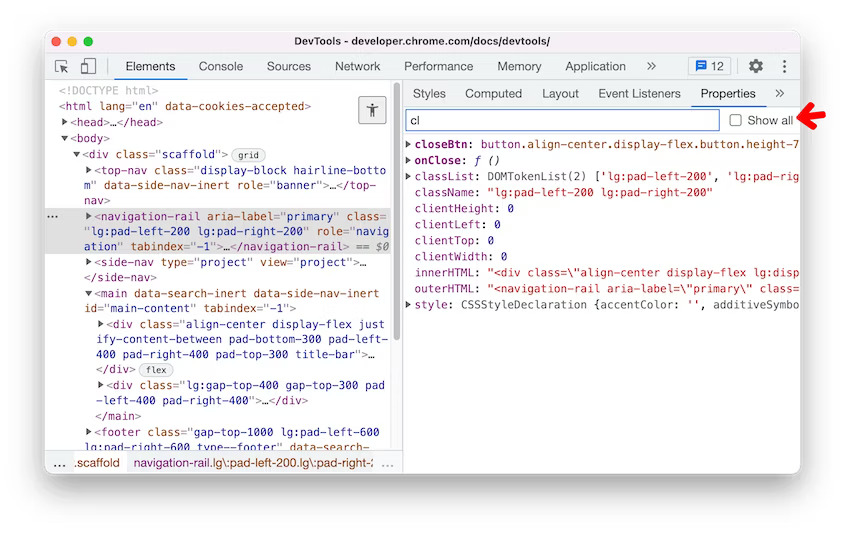

DevTools: Properties pane filter

If you want to focus on a specific property in the Properties pane, you can now type that property name or value in the new Filter textbox.

By default, properties whose value is null or undefined are not shown. Enable the Show all checkbox to view all properties.

DevTools: Properties pane filter in Blisk 20.0.176.140

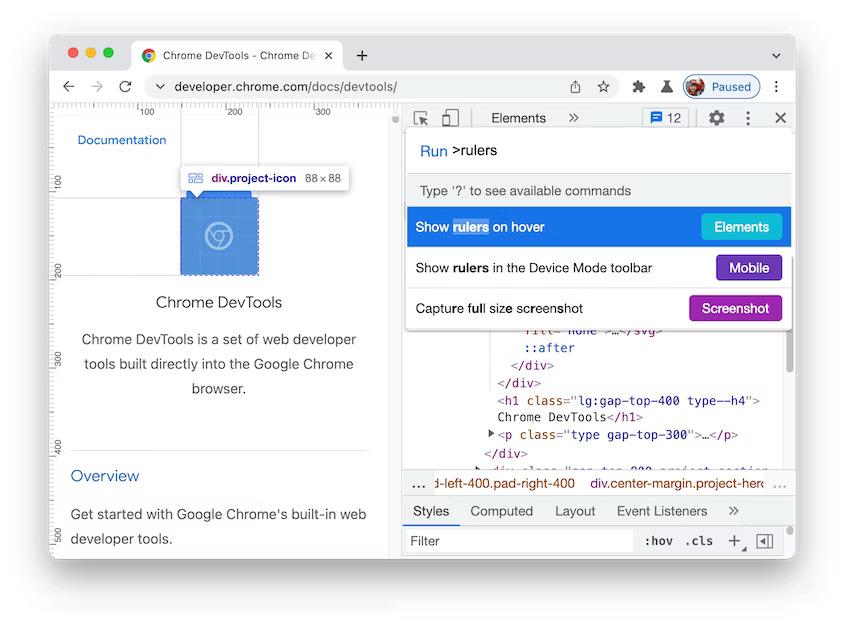

DevTools: Show rulers on hover command

You can now open the Command Menu (Ctrl+Shift+P or Cmd+Shift+P) and run the Show rulers on hover command. The page rulers make it easier to measure the width and height of an element.

Previously, you can only enable the page rulers via Settings > Show rulers checkbox.

Show rulers on hover command in Blisk 20.0.176.140

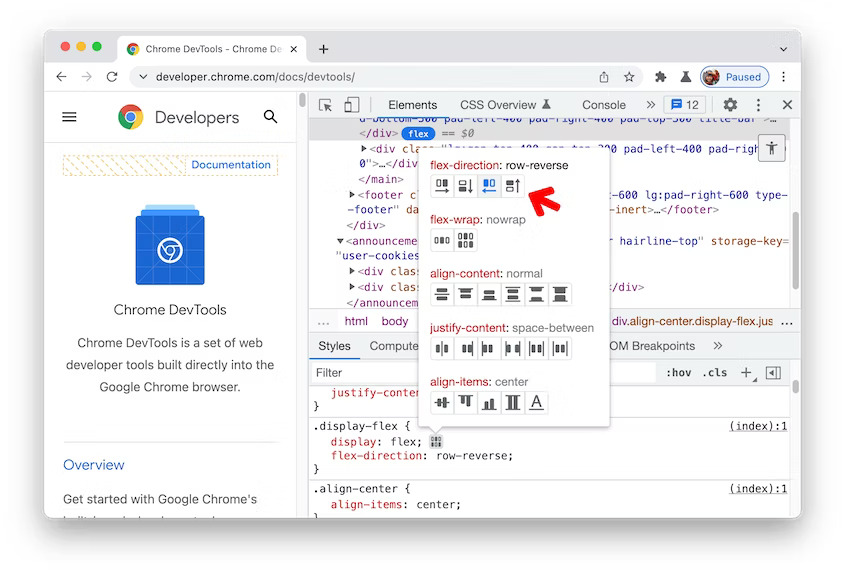

DevTools: Support row-reverse and column-reverse in the Flexbox editor

The Flexbox editor added two new buttons to support row-reverse and column-reverse in flex-direction.

CSS row-reverse and column-reverse in Blisk 20.0.176.140

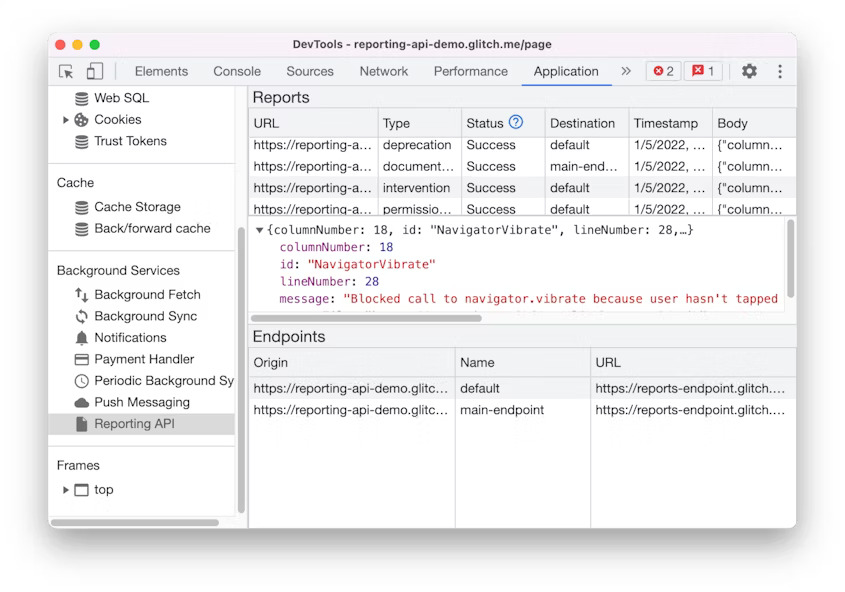

DevTools: New Reporting API pane

Use the new Reporting API pane to monitor the reports generated on your page and their status. The Reporting API is designed to help you monitor security violations of your page, deprecated API calls, and more. Open a page that uses the Reporting API. In the Application panel, scroll down to the Background services section and select the Reporting API pane.

The Reports section shows you a list of reports generated on your page and their status. Click on it to view the report’s details. The Endpoints section gives you an overview of all the endpoints configured in the Reporting-Endpoints header.

Reporting API pane in Blisk 20.0.176.140

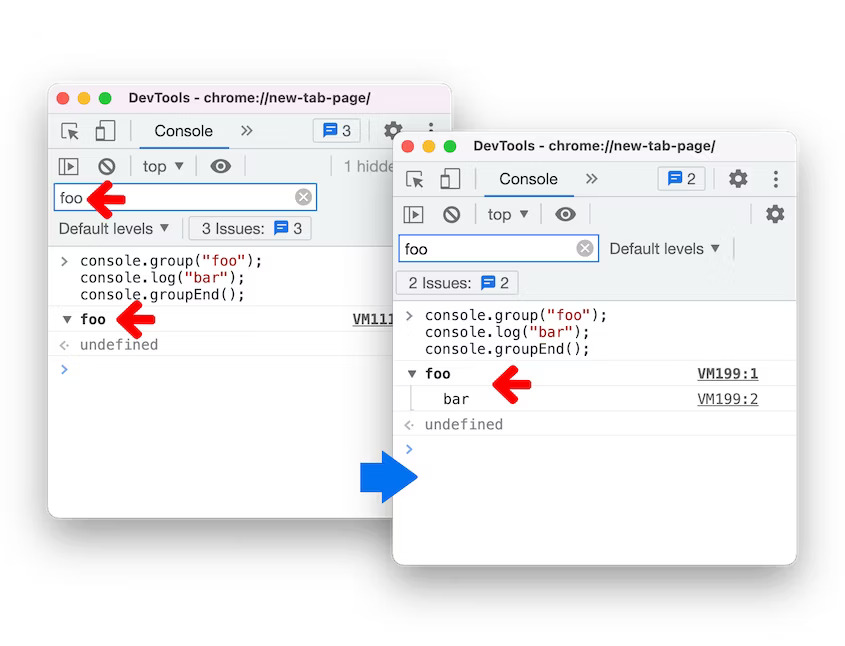

DevTools: New console group filter

When filtering the console message, a console message is now shown if its message content matches the filter or the title of the group (or the ancestor group) matches the filter. Previously, the console group title would show despite the filter.

In addition, if a console message is shown, the group (or the ancestor group) it belongs to is now shown as well.

Console group filter in Blisk 20.0.176.140

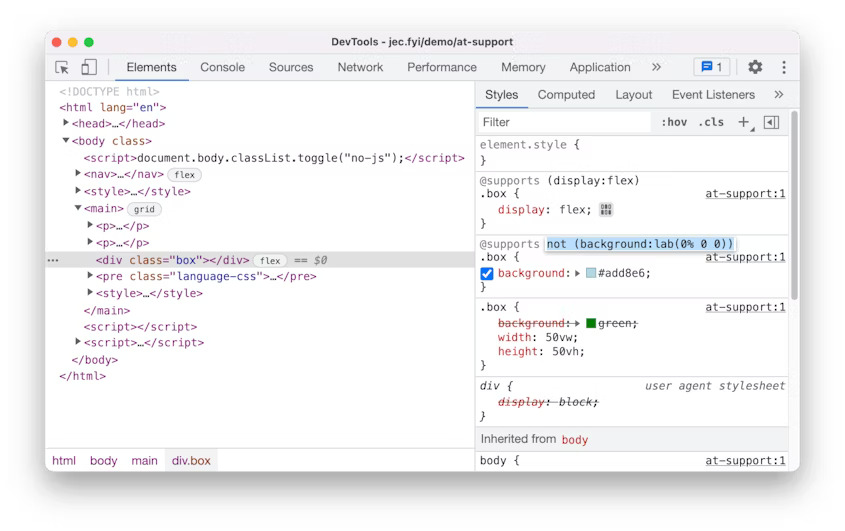

DevTools: View and edit @supports at rules in the Styles pane

You can now view and edit the CSS @supports at-rules in the Styles pane. These changes make it easier to experiment with the at-rules in real-time. Open this demo page, inspect the <div class=”box”> element, and view the @supports at-rules in the Styles pane. Click on the rule’s declaration to edit it.

CSS supports at rules in Blisk 20.0.176.140

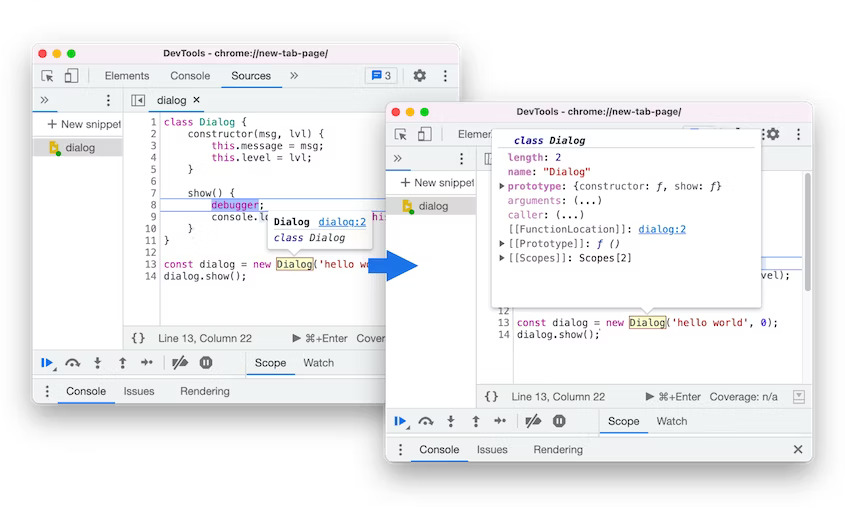

DevTools: Preview class/function properties on hover

You can now hover over a class or function in the Sources panel during debugging to preview its properties. Previously, it only showed the function name and a link to its location in the source code.

Class/function properties on hover in Blisk 20.0.176.140

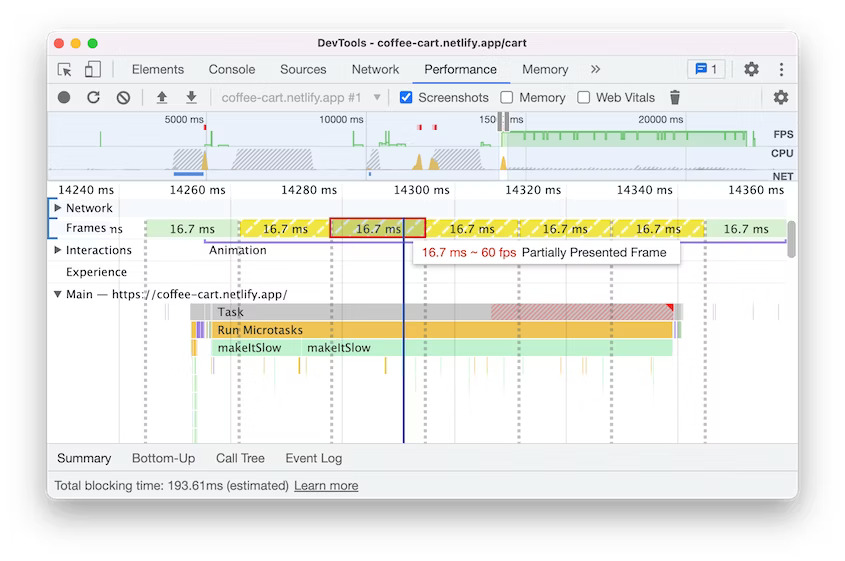

DevTools: Partially presented frames in the Performance panel

Performance recording now displays a new frame category "Partially presented frames" in the Frames timeline. Previously, the Frames timeline visualizes any frames with delayed main-thread work as "dropped frames". However, there are cases where some frames may still produce visual updates (e.g. scrolling) driven by the compositor thread. This leads to user confusion because the screenshots of these “Dropped frames” are still reflecting visual updates.

The new "Partially presented frames" aims to indicate more intuitively that although some content is not presented timely in the frame, the issue is not so severe as to block visual updates altogether.

Partially presented frames in Blisk 20.0.176.140

DevTools: Support for the hwb() color function

You can now view and edit HWB color format in Blisk DevTools. In the Styles pane, hold the Shift key and click on any color preview to change the color format. The HWB color format is added. Alternatively, you can change the color format to HWB in the color picker.

The new "Partially presented frames" aims to indicate more intuitively that although some content is not presented timely in the frame, the issue is not so severe as to block visual updates altogether.

Support for the hwb() color in Blisk 20.0.176.140

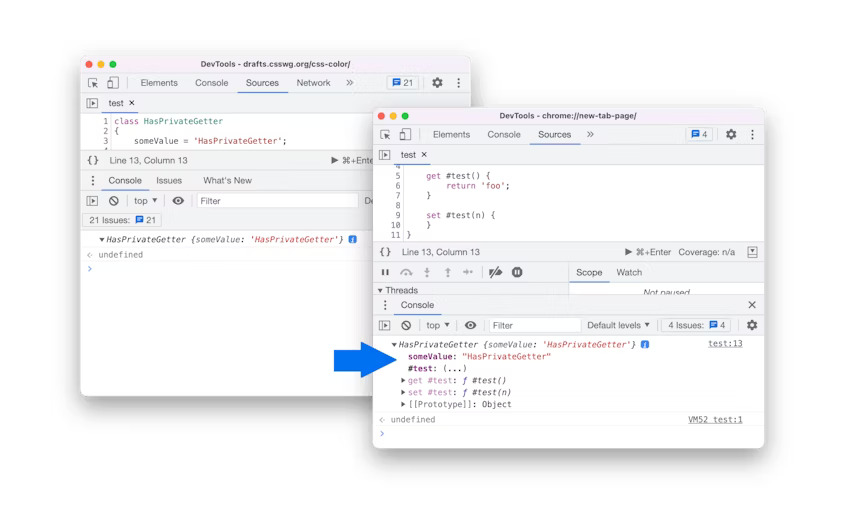

DevTools: Improved private properties

DevTools now properly evaluates and displays private accessors. Previously, you couldn't expand classes with private accessors in the Console and the Sources panel.

Improved private properties in Blisk 20.0.176.140

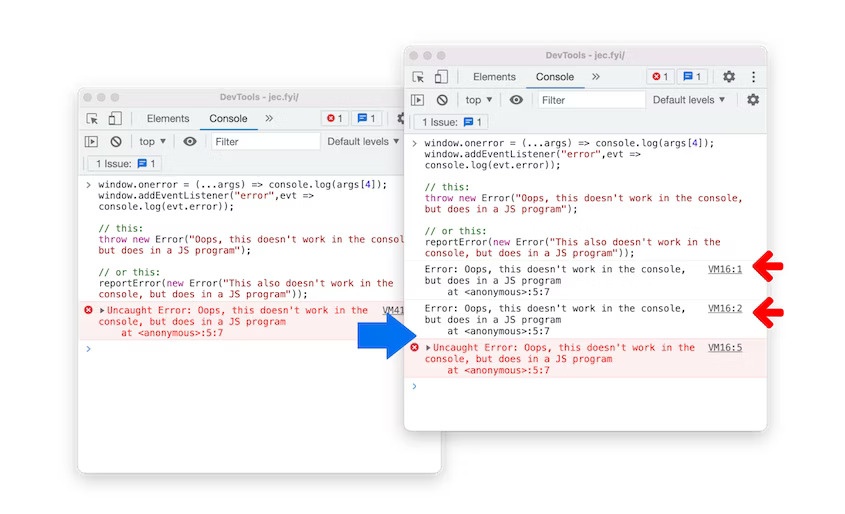

DevTools: Handle script execution errors in the Console

Errors during script evaluation in the Console now generate proper error events that trigger the window.onerror handler and are dispatched as "error" events on the window object.

Improved script execution errors in the Console in Blisk 20.0.176.140

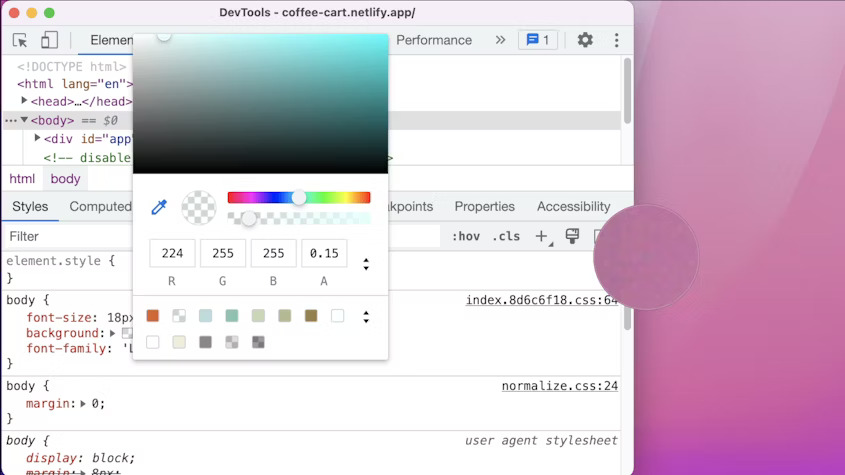

DevTools: Picking a color outside of the browser

DevTools now supports picking a color outside of the browser. Previously, you could only pick a color within the browser. In the Styles pane, click on any color preview to open a color picker. Use the eyedropper to pick a color from anywhere.

Improved private properties in Blisk 20.0.176.140

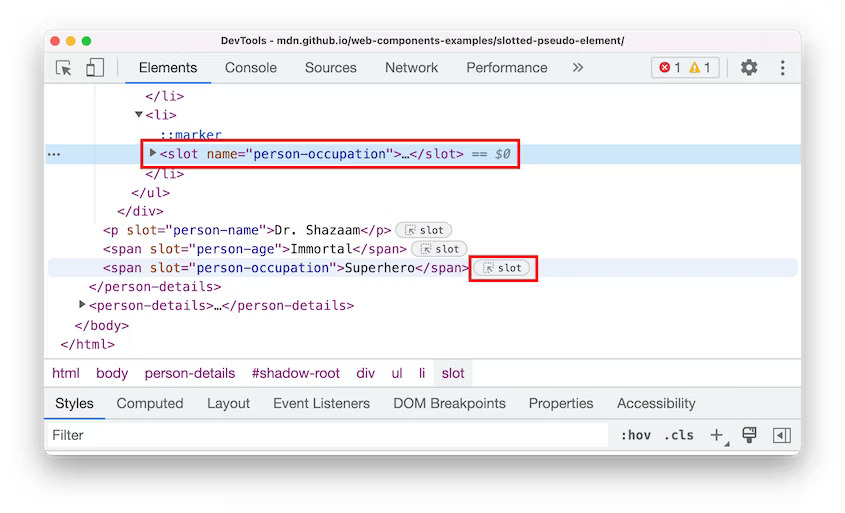

DevTools: Reveal assigned slot of an element

Slotted elements in the Elements panel have a new slot badge. When debugging layout issues, use this feature to identify the element which affects the node's layout quicker. Learn how to use and elements to create a flexible template that can then be used to populate the shadow DOM of a web component at MDN web docs.

Reveal assigned slot of an element in Blisk 20.0.176.140

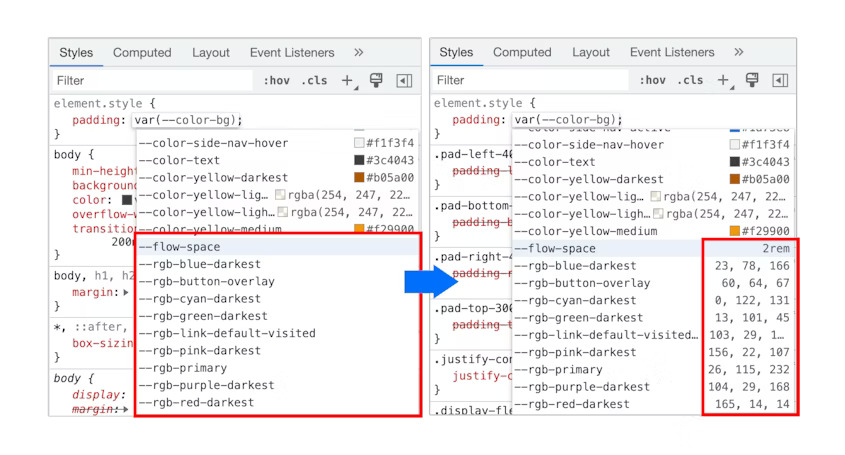

DevTools: CSS variables improvements

When autocompleting CSS variables, DevTools now populates the non-color variable with a meaningful value so that you can preview what kind of change the value will have on the node.

CSS variables improvements in Blisk 20.0.176.140

DevTools: Source maps improvements

Here are a few fixes on source maps to improve the overall debugging experience:

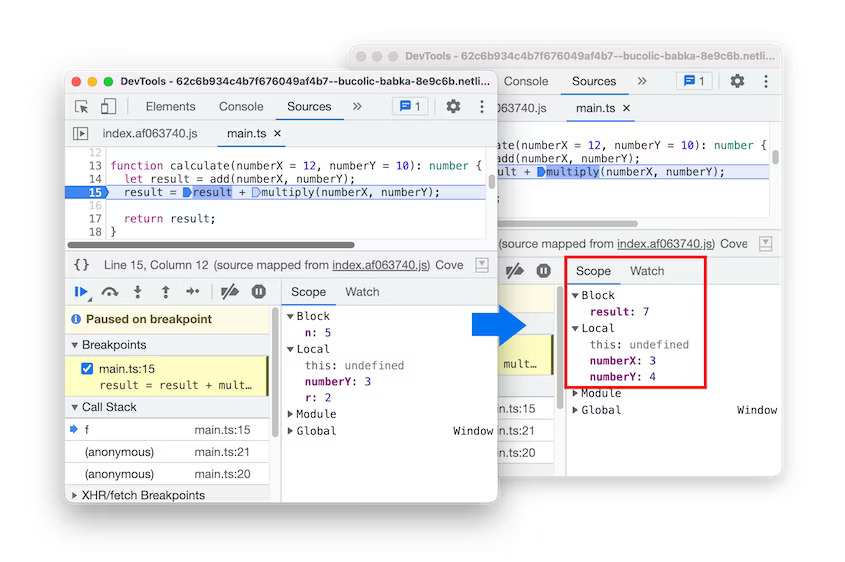

• Breakpoints now work in inline <script> with sourceURL annotations.


  Breakpoints now work in inline <script> with sourceURL annotations in Blisk 20.0.176.140

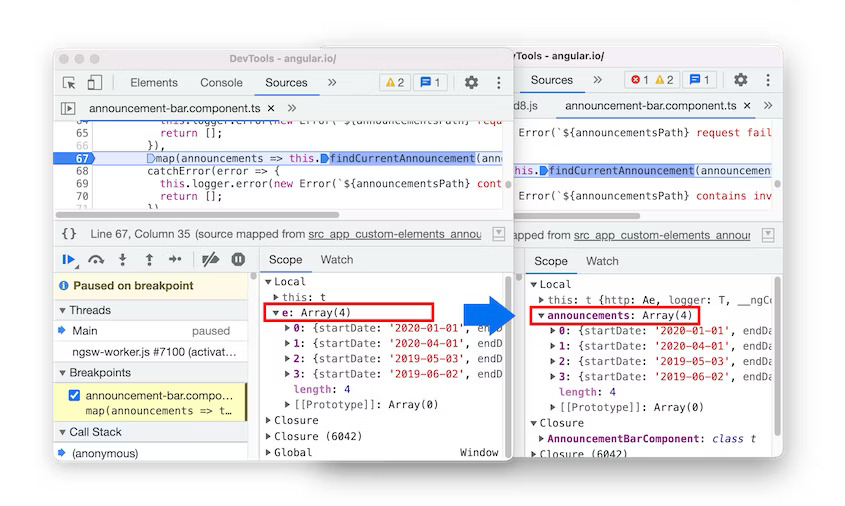

• The debugger now resolves block-scoped variables in the Scope view with source maps.


  The debugger now resolves block scoped variables in the Scope view with source maps in Blisk 20.0.176.140

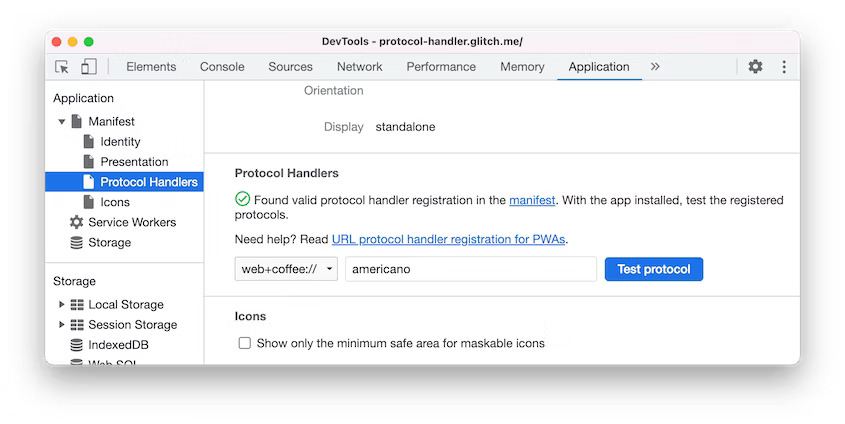

DevTools: Protocol handlers in the Manifest pane

You can now use DevTools to test the URL protocol handler registration for Progressive Web Apps (PWA). The URL protocol handler registration lets installed PWAs handle links that use a specific protocol (e.g. magnet, web+example) for a more integrated experience.

Navigate to the Protocol Handlers section via the Application > Manifest pane. You can view and test all the available protocols here.

Protocol handlers in the Manifest pane in Blisk 20.0.176.140
